FILT X 10 Inch Transparent Housing Filter
Model: FILT-X – PET10
Brand: FILT-X

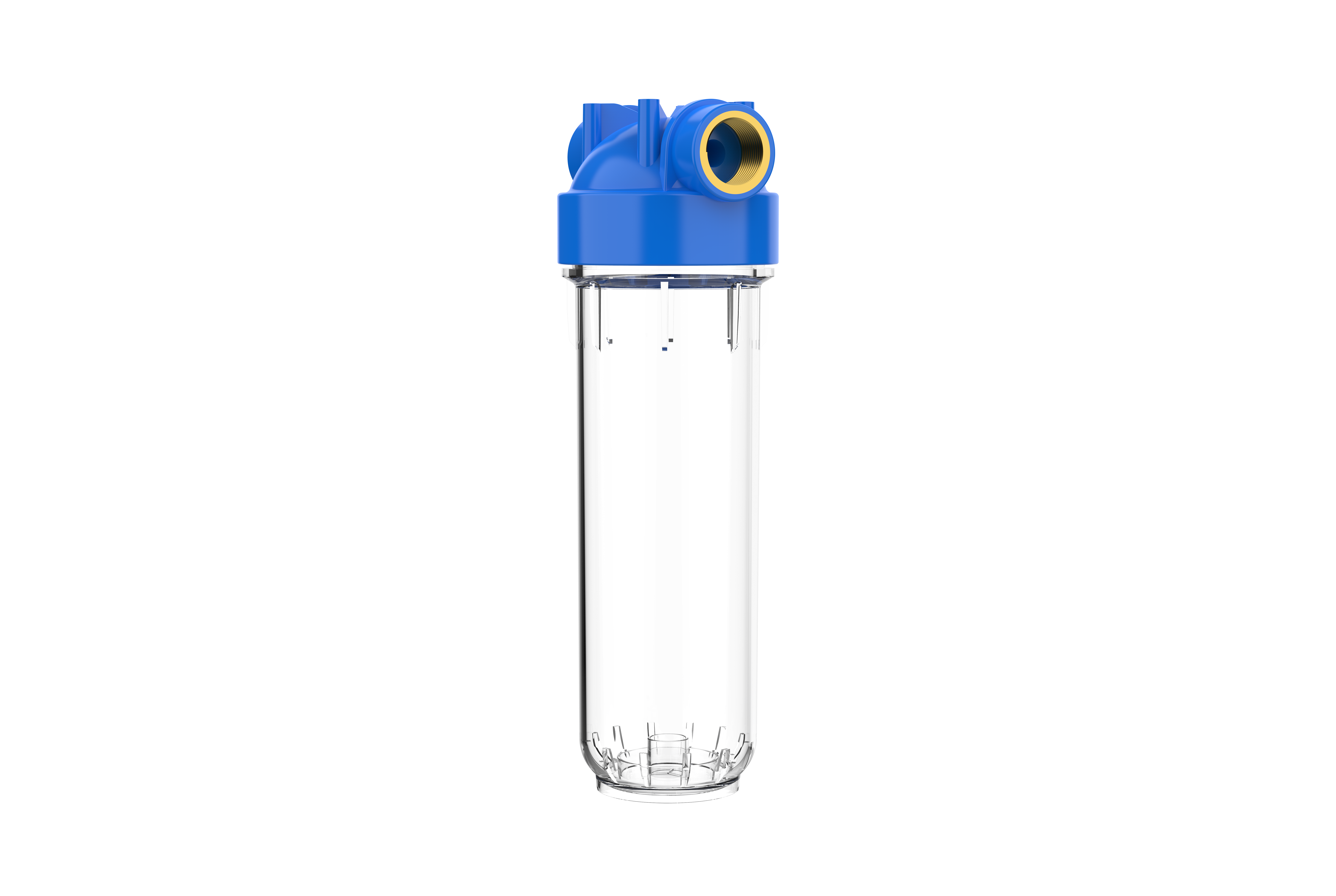

The FILT-X 10″ PET Filter Housing is engineered for durability and affordability in residential water filtration systems. Made with PET (Polyethylene Terephthalate), it offers excellent chemical resistance and high clarity, making it ideal for monitoring filter cartridge condition.
Key Features
Specification
Key Features
- Material: PET Clear Sump with Polypropylene Cap
- Inlet/Outlet Sizes: 1” (brass), ¾” (brass), 1/4″, 3/8″, or 1/2″ BSP (female)
- Maximum Pressure: 130 PSI (9 bar)
- Maximum Temperature: 120°F (49°C)
- Compatible Cartridges: Standard 10″ x 2.5″ filters
- Pressure Release Valve: Optional screw for safe cartridge changes
- O-Ring: Durable Buna-N for secure sealing
- Transparent Body: Easy visibility of cartridge condition

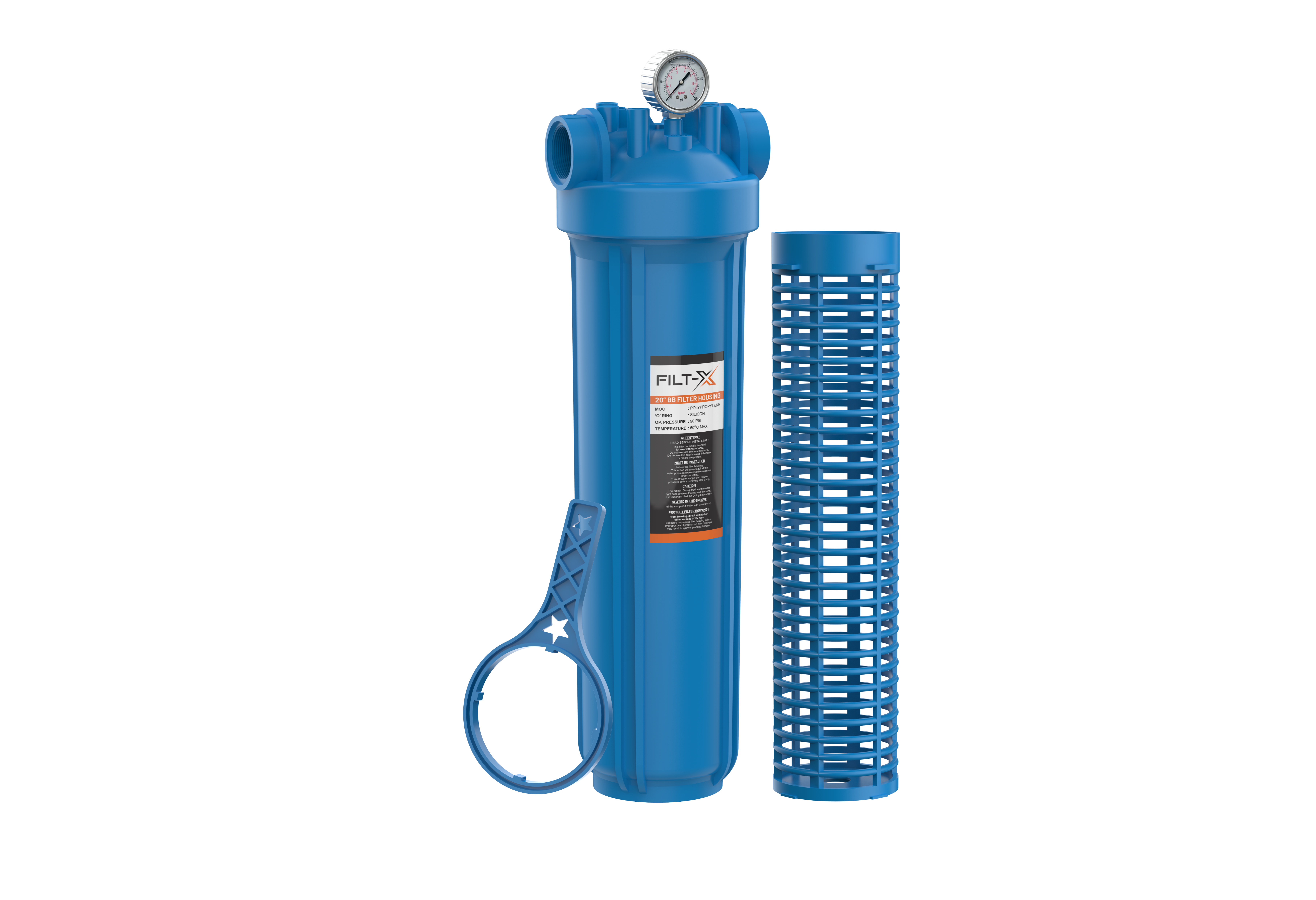

- Mounting Bracket and Wrench: Available as accessories
Specification
| Housing Size | 10 inch |
| Length | 10 Inch |
| Outer Diameter | 2.5 inch |
| Port Size | 3/4 inch |
| Size | 10 Inch |
| Material | Polypropylene |
| Diameter | 2.5 Inch |
| Color | Blue |
| End Connection | NPT/BSP Threaded |
| Gaskets / O Rings | EPDM |
| Maximum Operating Temperature | 50 Deg. C |
| Country of Origin | Made in India |
| BRAND | FILT-X |
| MAX OPERATING PRESSURE | 10 BAR |
