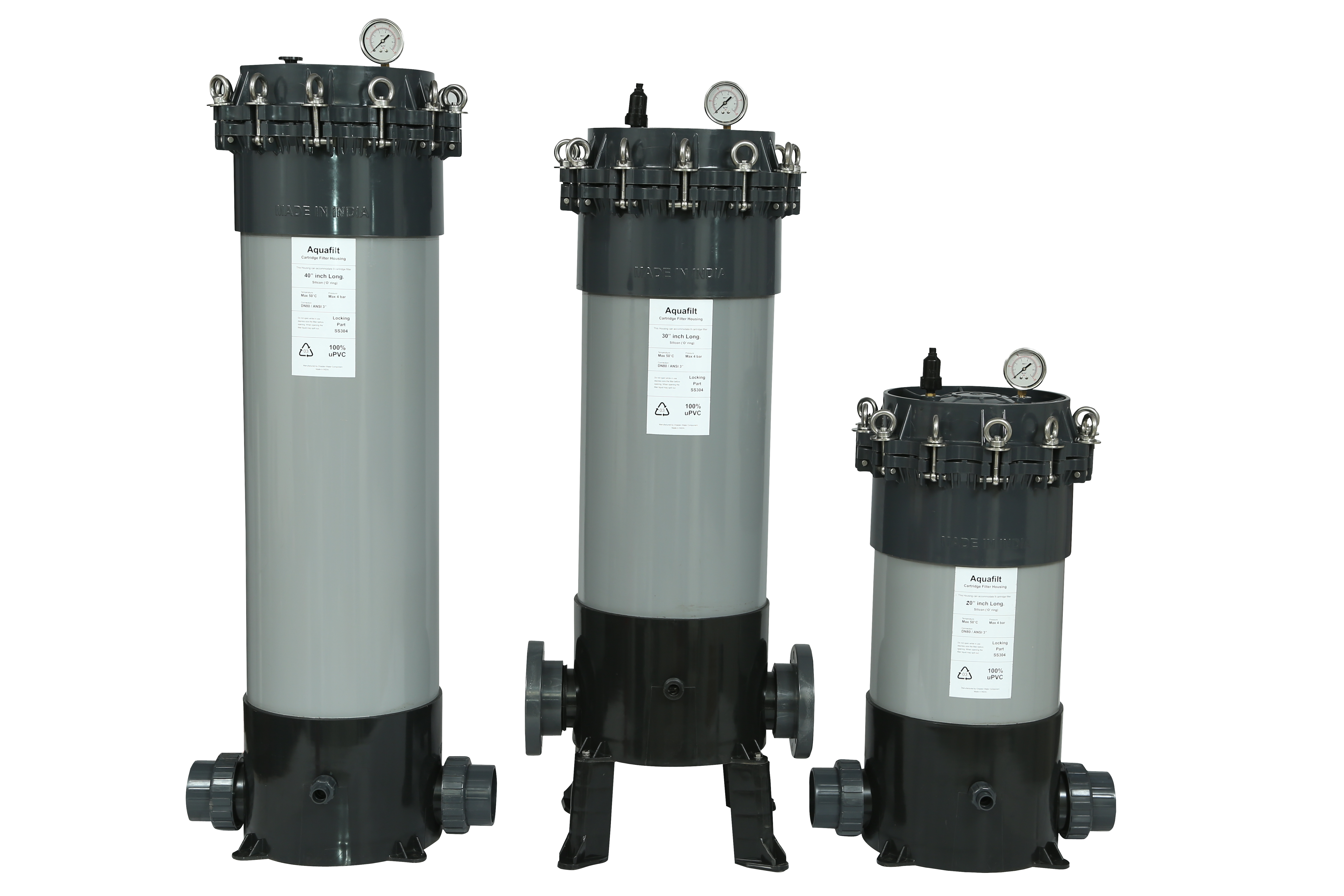

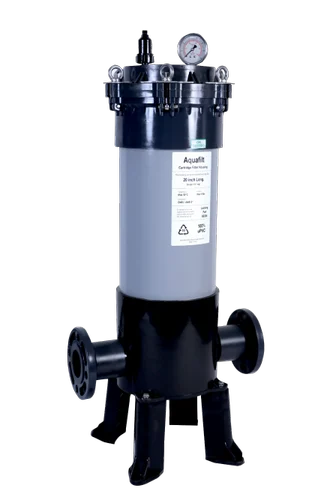

AQUAFILT: uPVC Cartridge Filter Housing
We are one of the famous manufacturers and exporter of an extensive array of Aquafilt: UPVC Filter Housing products to our clients. With a firm commitment to quality, we are involved in offering a wide ambit of UPVC Housing Cartridge Filter.
Details:
CWC cartridge filter system, Aquafilt is high precision. It consists of the housing and cartridge elements, mainly used in pretreatment. It can be widely used in electronics industry, sewage treatment beverage, foods, pure water treatment, also it can acts as home water purification equipment.
NOTE:
It can install all material; all precision’s cartridge 9 pcs or/& 8 PCS, which I.D. is 28-30mm, O.D. is 65-70mm. The highest working temperature is 45 C. The size of the two holes in cap is 1/4″ BSP threaded. On the cap, one side pressure gauge is mounted and on another side vent is mounted.
Application:
- Pharmaceuticals – Paints & Inks – Dyes & Intermediates
- Petroleum Derivatives – Food & beverages – RO Pre filtration
- Water Treatment – Bore Well water – Processing Chemicals
- Coolants – Dairy – & Many More
Operating Information:
|
Type |
Size(mm) |
Cartridge pcs |
Cartridge size |
In/out (mm) |
Drainer (mm) |
Max pressure |
|
|
CWC -9DC2 |
CWC-8DC2 |
Ø315-H745 |
9/8 |
20” |
DN80/ANSI 3” |
DIN1/2” or ANSI1/2” |
105 PSI |
|
CWC-9DC3 |
CWC-8DC3 |
Ø315-H995 |
30” |
||||
|
CWC-9DC4 |
CWC-8DC4 |
Ø315-H1245 |
40” |
||||
Application:
|
Pharmaceuticals |
Petroleum Derivatives |
|
Water Treatment |
Coolants |
|
Paints & Inks |
Food & beverages |
|
Bore Well water |
Dairy |
|
Dyes & Intermediates |
RO Pre filtration |
|
Processing Chemicals |
& Many More |
It can install all material; all precision’s cartridge 9 PCS or 8 PCS, which I.D. is 28-30mm,O.D. is 65-70mm.The highest working temperature is
45˚ c, The size of the two holes in the lid of the filter is G1/4”. If the thread of the pressure gauge is metric standard, should add an adaptor and on another side vent is mounted.
- All the parts of this series filters are made of UPVC material.
- The inlet and outlet are in the same line, which connected with the pipe is a 3″ union.
- The distribution system of Aquafilt filter is distributed from bottom to top. Water is well-proportioned with small strike to cartridges and air is easy to be discharged.
- The bottom system of Aquafilt filter is designed together as a whole with the top localizer & closure system.
- The lid and the body are connected using eyebolts flange method, Ensure a good seal performance and ensure the filter can stand higher pressure.
- Aquafilt filter is corrosion resistant; it can be used is SS-none-replace field.
