20NB Top Mount Multiport
valve filter & Softner
Product / Multiport Valve filter & Softener / 20NB Top Mount Multiport valve filter & Softner

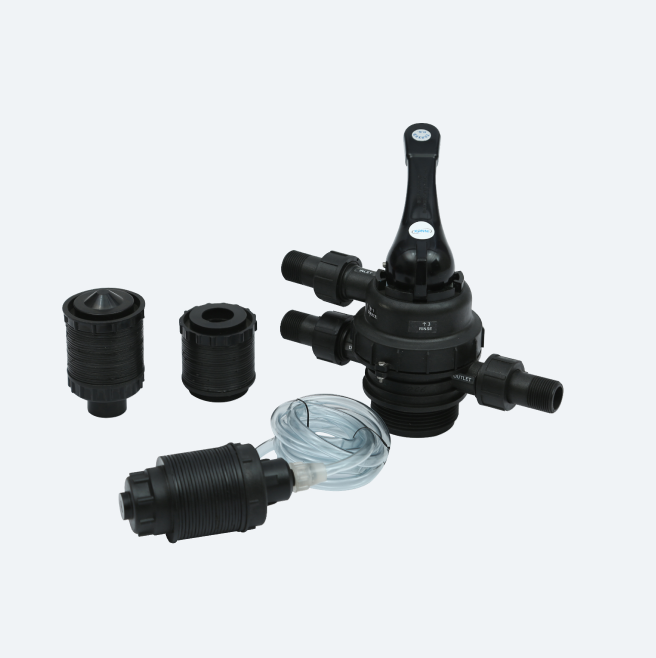

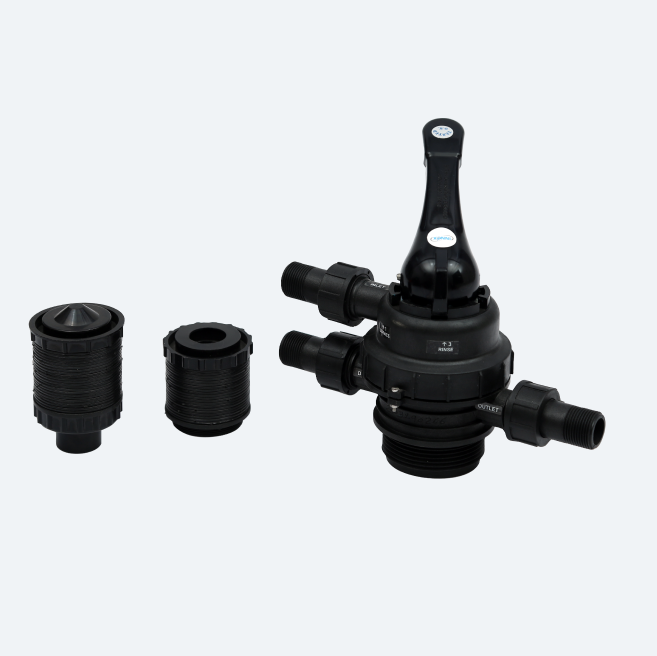

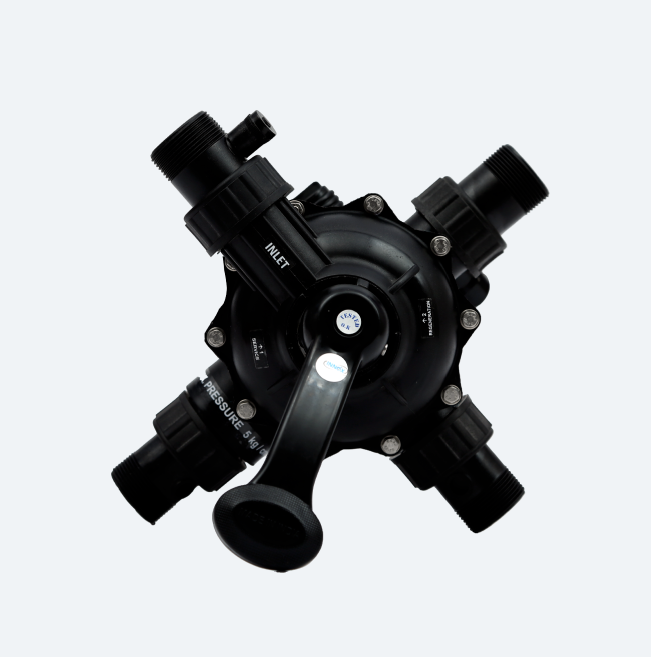

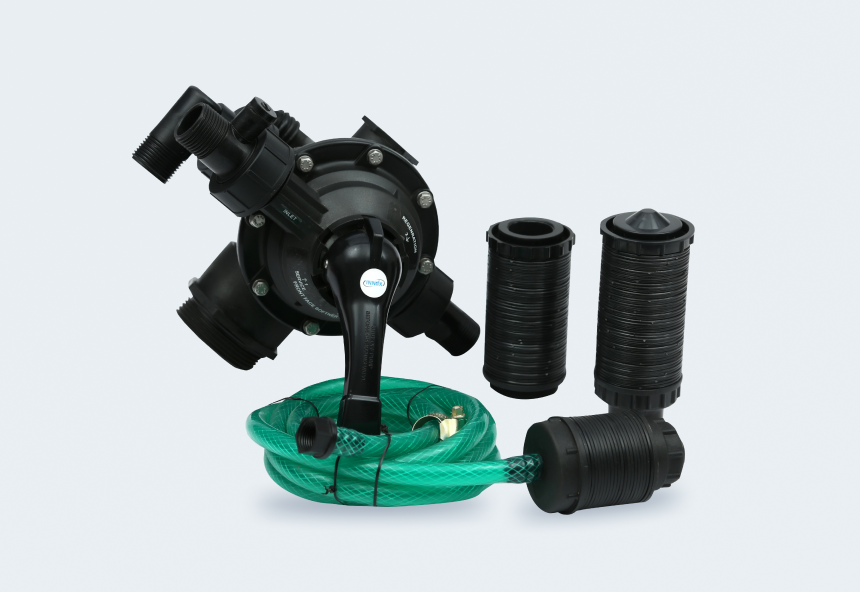

20NB Top Mount Multiport valve filter & Softner
Among our wide range of products, we are offering a premium quality assortment of Top Mounted and Front Face filter and softener Multiport Valves. We offer a highly efficient range of 3/4 “and 1” Multiport Valves, which are fabricated using quality material and offer 40 % higher flow. These valves have the inlet and outlet in precisely same axis and are built in unions. Our range finds application to fit in all types of vessels without adapters.Among our wide range of products, we are offering a premium quality assortment of Top Mounted and Front Face filter and softener Multiport Valves. We offer a highly efficient range of 3/4 “and 1” Multiport Valves, which are fabricated using quality material and offer 40 % higher flow. These valves have the inlet and outlet in precisely same axis and are built in unions. Our range finds application to fit in all types of vessels without adapters.
| Model | 1.5” Filter and Softener Top Mount | 1.5” Filter and Softener Side Mount |
|---|---|---|
| Material | Nylon | |
| Media | Fuel, Water | |
| Valve connection with top opening vessel | 65 mm (2 ½”) NPSM (8 tpi) or 100mm (4”) | – |
| Riser pipe size | 32 mm PVC pipe | – |
| Max. flow rate (valve + strainers) | 12 m3/h | |
| Working Pressure | 0.15 – 0.6 MPa | |
| Working Temperature | 5 – 50 °C | |
| Inlet, outlet, drain connections | 40 mm BSPF quick release union straight | |
| Maximum Operating Pressure | 4 to 6 Kg/cm² for GF | |
| Minimum pressure for uniform suction | 2.0 kg/cm² | |
| Ejector brine line | ½” BSP | |
Among our wide range of products, we are offering a premium quality assortment of Top Mounted and Front Face filter and softener Multiport Valves. We offer a highly efficient range of 3/4 “and 1” Multiport Valves, which are fabricated using quality material and offer 40 % higher flow. These valves have the inlet and outlet in precisely same axis and are built in unions. Our range finds application to fit in all types of vessels without adapters.Among our wide range of products, we are offering a premium quality assortment of Top Mounted and Front Face filter and softener Multiport Valves. We offer a highly efficient range of 3/4 “and 1” Multiport Valves, which are fabricated using quality material and offer 40 % higher flow. These valves have the inlet and outlet in precisely same axis and are built in unions. Our range finds application to fit in all types of vessels without adapters.
Features
- Crafted using premium-grade materials for enhanced durability and performance.
- Designed for quick setup with minimal tools and hassle-free integration.
- Optimized for maximum efficiency in water treatment and filtration systems
- Suitable for various water treatment systems and industry needs.
Application
- Crafted using premium-grade materials for enhanced durability and performance.
- Designed for quick setup with minimal tools and hassle-free integration.
- Suitable for various water treatment systems and industry needs.
